白山株式会社

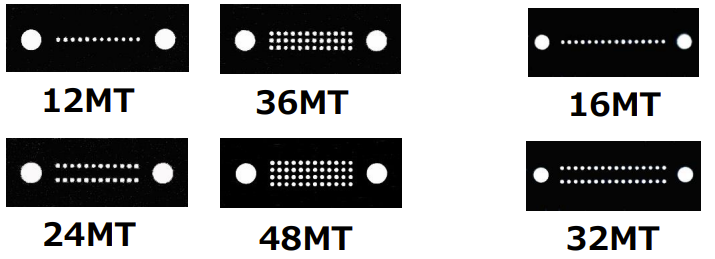

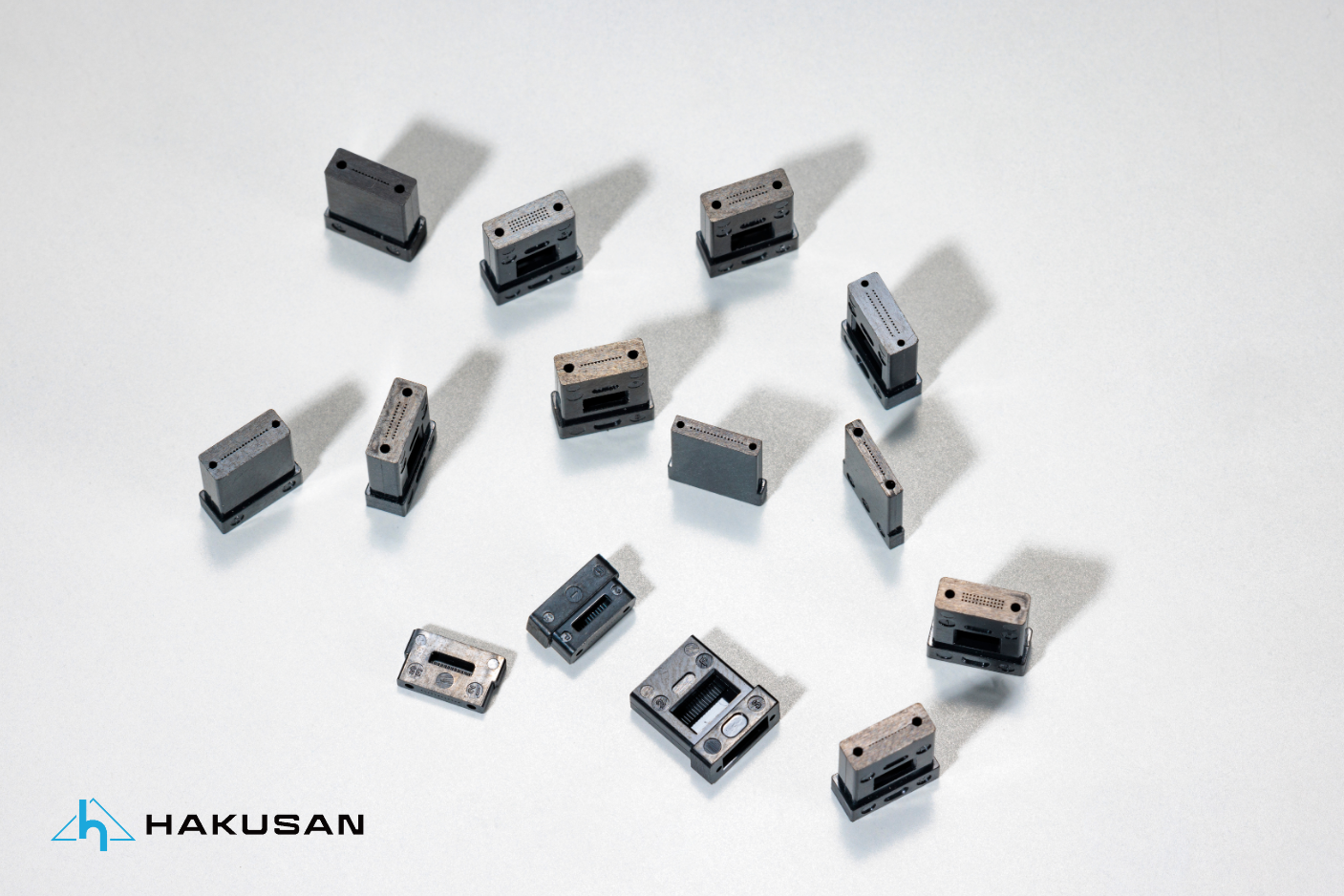

批量供应：8芯/12芯/16芯/24芯/32芯/36芯/48芯，多模、单模各种损耗要求插芯。
|
材料 |
光纤类型 |
物料编码 |
研磨 |
芯数 |
插入损耗 IL (dB) |
||
|
0.35 |
0.50 |
0.70 |
|||||
|
热塑性 PPS |
单模 |
8MT-PA-S |
Angled PC |
8 |
|
|
● |
|
8MT-PA-SLS |
Angled PC |
8 |
● |
|
|
||
|
12MT-PA-S |
Angled PC |
12 |
|
|
● |
||
|
12MT-PA-S-ID80 |
Angled PC |
12 |
|
|
● |
||
|
12MT-PA-S-L4 |
Angled PC |
12 |
|
|
● |
||
|
12MT-PA-SLS |
Angled PC |
12 |
● |
|
|
||
|
16MT-PA-S |
Angled PC |
16 |
|
|
● |
||
|
16MT-PA-SLS |
Angled PC |
16 |
● |
|
|
||
|
24MT-PA-S |
Angled PC |
24 |
|
|
● |
||
|
24MT-PA-S-ID80 |
Angled PC |
24 |
|
|
● |
||
|
24MT-PA-LS |
Angled PC |
24 |
|
● |
|
||
|
32MT-PA-S |
Angled PC |
32 |
|
|
● |
||
|
36MT-PA-S |
Angled PC |
36 |
|
|
● |
||
| 48MT-PA-S | Angled PC | 48 | ● | ||||
|
多模 |
12MT-PF-M-ID80 |
Flat PC |
12 |
|
● |
|
|
|
12MT-PF-M-T1.25-L8 |
Flat PC |
12 |
|
● |
|
||
|
12MT-PF-M-T1.25-L4 |
Flat PC |
12 |
|
● |
|
||
|
12MT-PF-M-L4 |
Flat PC |
12 |
|
● |
|
||
|
12MT-PF-M |
Flat PC |
12 |
|
● |
|
||
|
12MT-PF-SLM |
Flat PC |
12 |
● |
|
|
||
|
16MT-PF-M |
Flat PC |
16 |
|
● |
|
||
|
16MT-PA-SLM |
Angled PC |
16 |
● |
|
|
||
|
24MT-PF-M |
Flat PC |
24 |
|
● |
|
||
|
24MT-PF-SLM |
Flat PC |
24 |
● |
|
|
||
|
32MT-PF-M |
Flat PC |
32 |
|
● |
|
||
|
36MT-PF-M |
Flat PC |
36 |
|
● |
|
||
|
48MT-PF-M |
Flat PC |
48 |
|
● |
|
||
特殊插芯简介：
12芯，多模标准损耗，插芯厚度1.25mm, 插芯长度8mm：
12芯，多模标准损耗，插芯厚度1.25mm, 插芯长度4mm：
12芯，标准损耗、插芯厚度2.5mm, 插芯长度4mm，单模、多模规格可供应：
窄Pitch MT插芯，光纤孔间距缩小到0.125mm，80um光纤孔径，24芯：
光波导用快装MT插芯；
如需进一步了解产品详细信息，欢迎与我们取得联系。
或者登录白山官网 www.hakusan-mfg.co.jp 了解更多产品内容。
